World's First AI Robot for high power fiber laser hair removal - ROCOZYER Depi.
Technology frees hands, Intelligence comfort life
- 2100W high power 810nm /Triple wavelength fiber coupled diode laser;
- 6-joint electric drive and AI image body recognition for precise and flexible movements;
- Integrated machine vision systems for real-time 3D imaging and accurate limb recognition;
- Intuitive 3D solid modeling and multi-angle visual observation;
- Subdivision processing of body parts, precise control, and dual massage modes;
Flexible collaborative robotic arm is based on 6-joint electric drive, and Al image body recognition, pre-programmed movement trajectory, more flexible and precise movement, higher collision avoidance, safety and reliability.
Dynamic tracking
The ability to intelligently recognize and follow the body’s allmovements, ensures that the massage head is always close to the body,providing an uninterrupted and comfortable process.
Machine’s vision systems are capable of recognizing limbs and subjects with high accuracy by processing 3D camera imagesin real time. Such system utilize advanced algorithms and techniques to accurately recognize human poses and movements, providing accurate guidance and control of flexible collaborative robotic arm.
Professional parameters’ suggestion basedon different skin tone, hair type and bodyarea,Purely automatic operation, supereasy process.
Third view protection
lf human movement is detected or there is a problem with recognition, it will with-draw autonomously to avoid misuse.
3D solid modeling, multi-angle visual observation; real-time environment monitoringconvenient and intuitive; the machine’s own top view angle, can be safe self-testing.
Combining the camera recognition, freely choose the targetarea with exact size on interface.
Subdivision processing of body parts, accurate target parts,synchronous output.
Precised shots number presetting for target area, countingdown operation to ensure full efficacy.
Total energy setting and accumulation ensure professionalhair removal effect, intelligent and repeated running pathmake operation finish in shortest time but not miss any area.

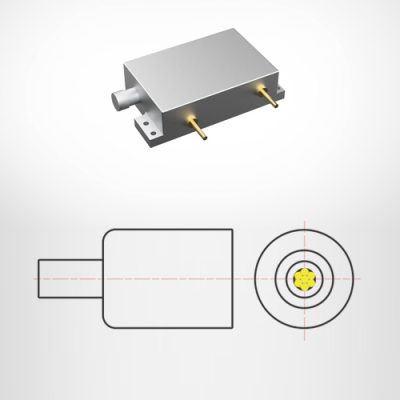

High Power Fiber Coupled Diode Laser
The light generated by multiple diode laser are coupled into a single-core multimode fiber by microlens array, in order to deliver light to the target place. t can work in high temperature even 45°C and moisture environment, protect core laser generator never happen problem caused by thermal damage, so prolong the lifespan of hand piece to 50 milion shots and two years’ guarantee. No anyconsumable like filter at all, need not change high hand piece very year, most economical diode lasermachine in the market.
2100W high power 8l0nm/Triple wavelength fiber coupled diode laser
7 pics of fiber, total 2100W power. Higher power, much better efficiency and treatment effect.
Fiber Coupled Diode Laser HR Working Principle
Using high power 808nm or triple wavelength diode laser’s short pulse on the hair, the melanin in the hair shaft and follicle absorbs the laser and generates heat, destroying the hair folicle, and the damaged follicle can not grow new hair, so as to achieve the effect of permanent hair removal.
Both operation modes and high sliding speed
Single + continuous shots two operation modes, maximum continuous frequency can reach 9HZ, fast hair remo.
val for body large area; 1 to 9HZ adjustable for different target area size.
Sapphire contact cooling ensure continued low temp. on epidermis, safe and comfortable
Regionalized Exclusive Settings
Single + continuous shots two operation modes, maximum continuous frequency can reach 9HZ, fasthair removal for body large area; 1 to 9HZ adjustable for different target area size.
Most powerful light source, efficientand excellent HR experiences.
50million shots’ lifespan with nothingconsumable.
Big spot size for fast operation.
WlFl internet connection, remote check, management and online updaating.
Reliable and economical choice.
Round spot and very small divergence angle, evenly spot and comfortable treatment feeling.
Strong ltalian cooling system bringlong time running and nothing pain.
FDA, MDD and ANVISA fullcertificate approved.
Parameters
| Robotic Arm | 6-joint electric drive |
| Working Radius | ≤0.92m |
| Standard Load Capacity | ≥5KG when towing, down pressure 7KG |
| Limit Load Capacity | ≥7KG when towing, down pressure 8KG |
| Force Acquisition Range | ≤+10KG, Resolution 0.1KG |
| Single Track Length | ≥5000 nodes, more than 3 min |
| Running Speed | ≤0.5m/s |
| Cooling Temperature | ≤5°C |
| Control System | X86 fully enclosed embedded computer as the core, supplemented by Gigabit network port directly connected to the arm body controller, ultra-high integration |
| Camera Sensor | a 2-in-1 highly integrated solution that combines live view camera + TOF deep view camera |
| Light Sources | Fiber coupled diode laser |
| Wavelength | 808nm/triple wavelength (808nm, 755nm, 1064nm) |
| Operation Way | Contact |
| Spot Diameter | 18mm |
| Pulse Width | 0-114ms |
| Peak Power | 1.8KW |
| Power | 2100W |
| Frequency | 9HZ |
| Cooling | Sapphire contact cooling+Water cooling |
| Net Weight | 48kg |
| Mainframe Size | 420*420*500mm |
